| Processor | Embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 8+2 channels, each channel up to 6MP |
| Two-way Talk | Reuse audio in/out, RCA |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Performance SMD Plus | 4 Channels |
| Video Input | 8 channel, BNC |
| AI Search SMD | Search by target classification (Human, Vehicle) |
| Video Recording | Main Stream: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15 fps); 960H/D1/CIF/(1 fps–25/30 fps) Sub stream: 8-channel: CIF (1 fps–7 fps) |
| Resolution | 1080N; 720P; 960H; D1; CIF |
| Video Compression | H.265+/H.264+/H.264 |
| Video Display Split | 1/4/8/9 |
| Encode Strategy | AI Instastream, Instastream |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Output | 1 channel, RCA |
| Audio Input | 1 channel, RCA |
| Motion Detection | Support |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Video Loss | Support |
| Audio Bit Rate | 64Kbps Per Channel |
| Bit Rate | 32 kbps–4096 kbps per channel |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 1 SATA port, up to 6TB |
| Camera Blank | Support |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Backup Mode | USB Device/Network |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom |
| Max User Account | 128 users |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | 1 RJ-45 port (100Mbps) |
| Interface Ports | 2 USB Ports (USB 2.0) |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; InstaOn cloud; IP Search, ONVIF 16.12, CGI Conformant |
| Power Supply | DC12V/1.5A |
| Power Consumption | |
| Operating Temperature | -10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% (RH) |
| Storage Temperature | -20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH) |
| Dimension | 198 mm × 202.9 mm × 41.5 mm |
| Weight | 0.62kg (without HDD) |
Ratings & Reviews

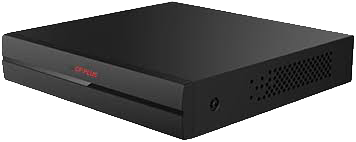

0 Review for CP PLUS CP-UVR-0801E1-IC2 8 Channel Full HD DVR with H.265+ Compression – Upto 2.4MP Camera Support, Black
2-year warranty on NVR/XVR in accordance with the manufacturer's guidelines. We also provide free remote support for 2 years following installation, with on-site support available for a charge if needed. Customers can register service requests via phone, WhatsApp, email, our website, or mobile app.Additionally, we offer installation and Annual Maintenance Contracts (AMC) upon request. Please note that terms and conditions apply, and the warranty is void if damage is caused by customer-supplied items, power electrical surges, mishandling, or unauthorized tampering. Please be aware that the image shown may vary from the actual product.
