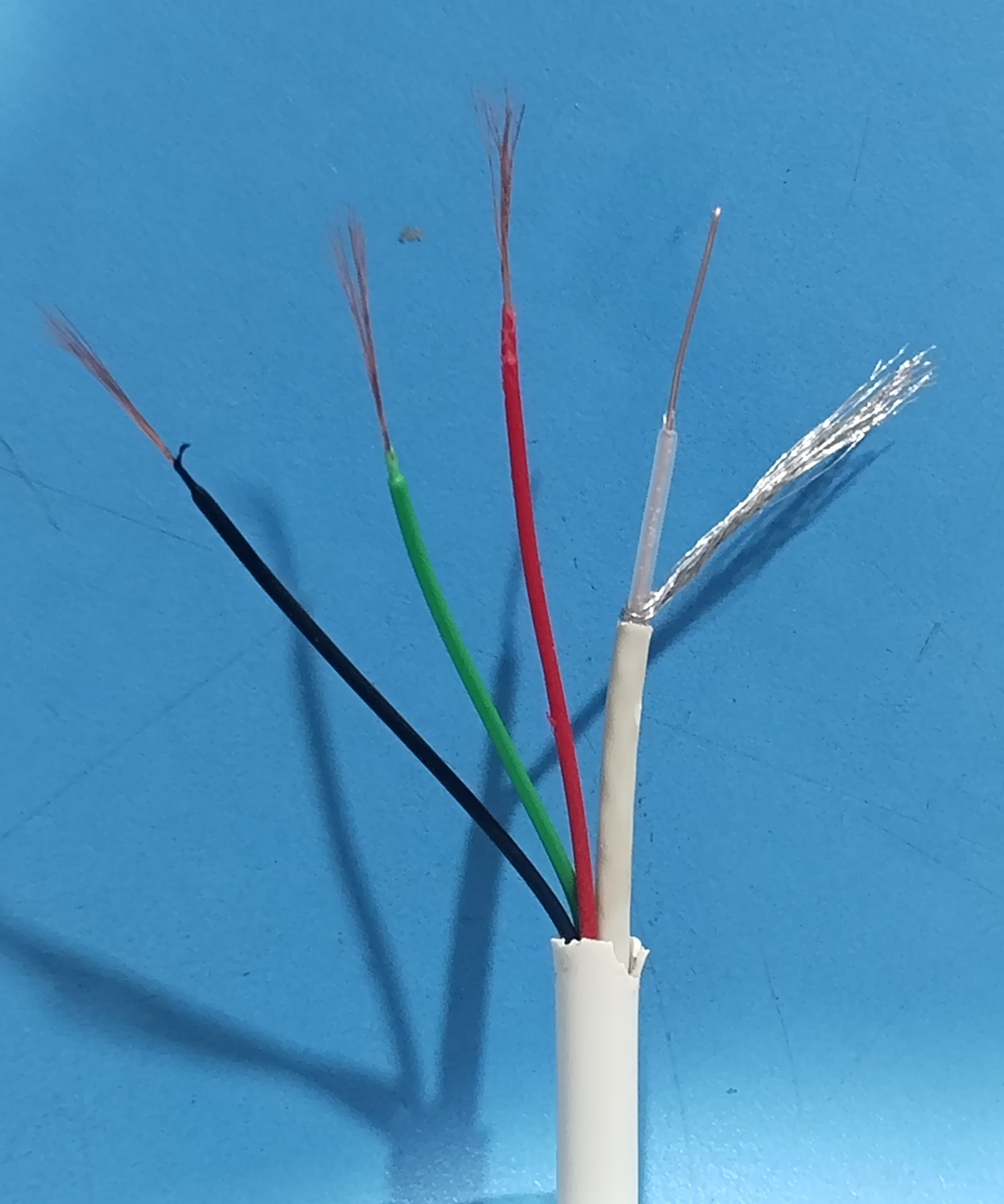

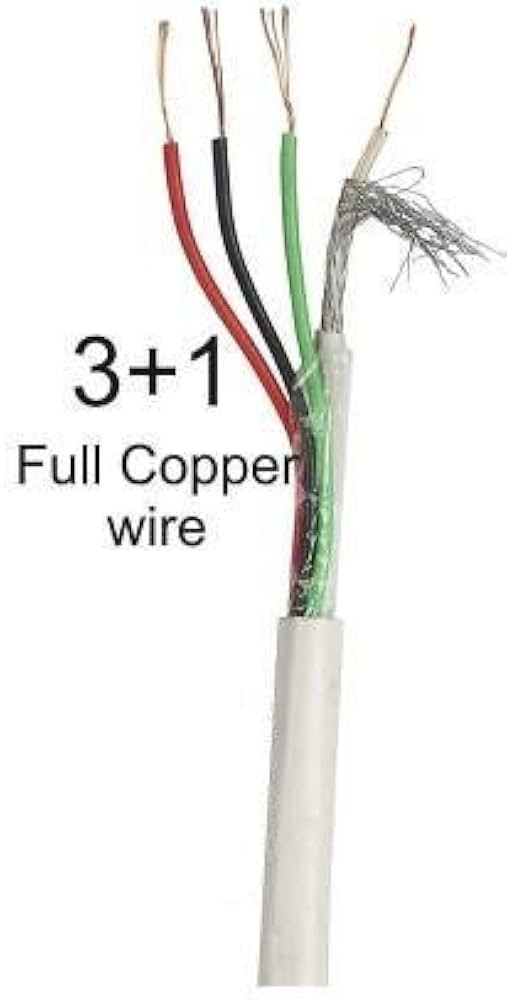

Video Core Specifications:- Solid annealed bare copper conductor 24 AWG with a diameter of approximately 0.51 mm- High-density polyethylene (HDPE) or foamed PE insulation- Shielding: Aluminum Mylar tape foil shield and/or a braiding of aluminum alloy or copper wire providing approximately 95% coverage to reduce interference.
Power and Audio Core Specifications:- Stranded annealed bare copper- Three cores with red, black, and green color coding- Conductor size: 4 strands of 0.063 mm (42 AWG) diameter wire- Insulation: LDPE or PVC- Current capacity: Power cores can carry around 5 A
Additional Features:- The entire assembly is encased in a protective outer sheath made of PVC, which is flame-retardant and weatherproof for both indoor and outdoor installations- Voltage grade: Suitable for low voltage applications, typically around 12 V- Features: Flame retardant, high tensile strength, good insulation.

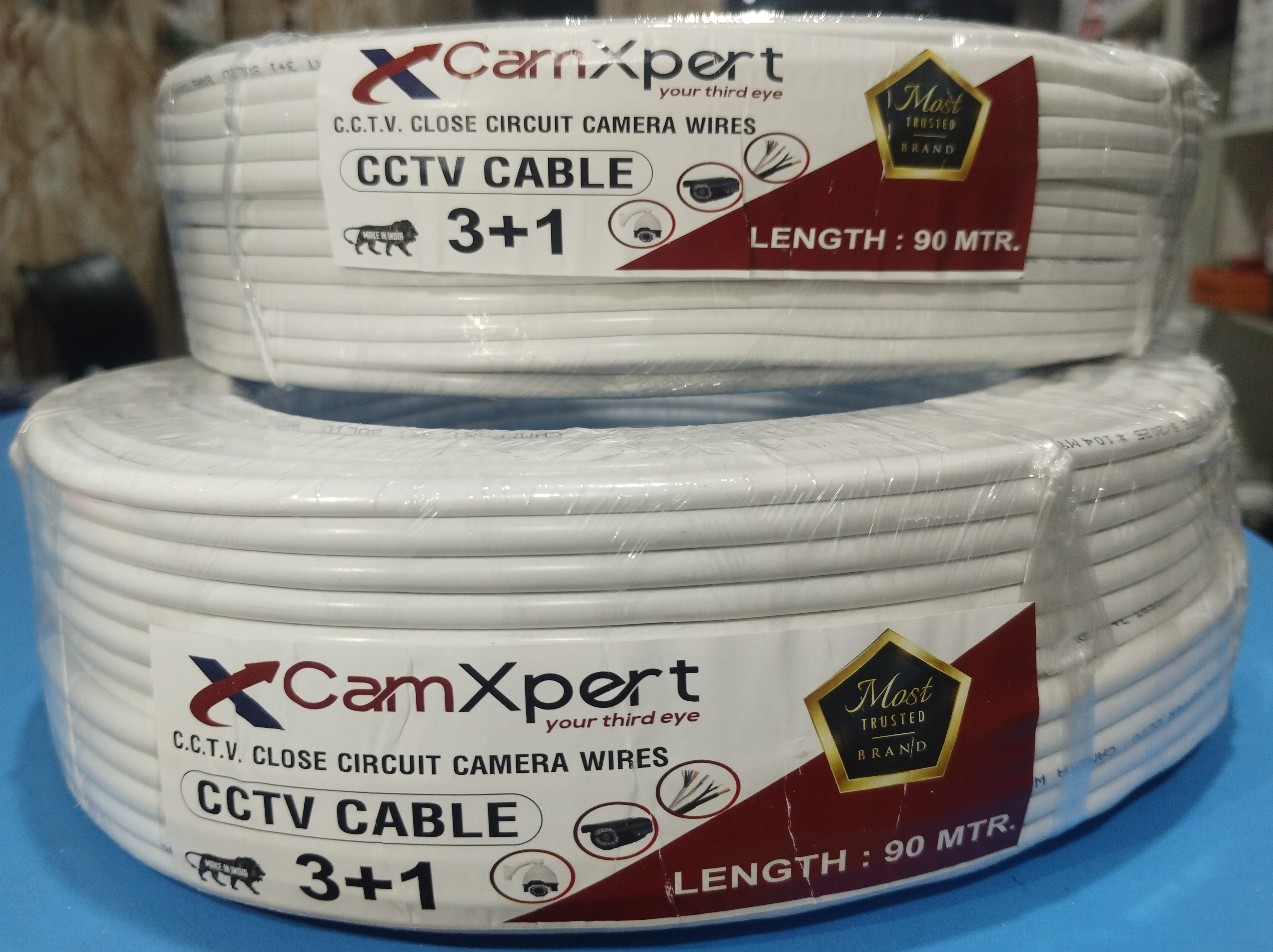

Recommended for distances up to 90 meters and supports cameras up to 2.4 MP HDOverall, this cable is designed for durability, safety, and high performance in video and audio applications.
